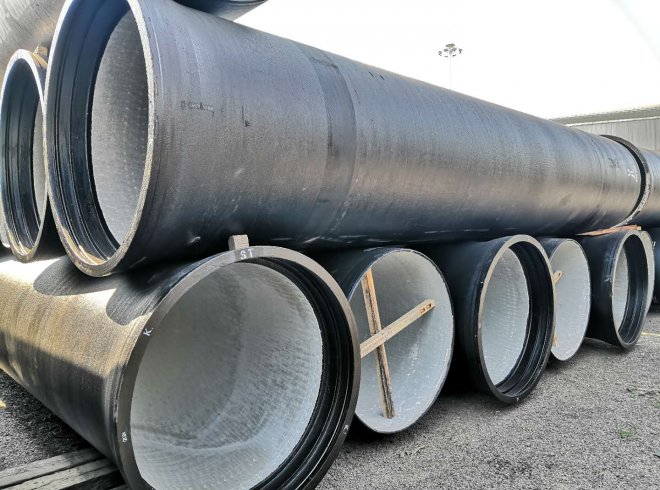

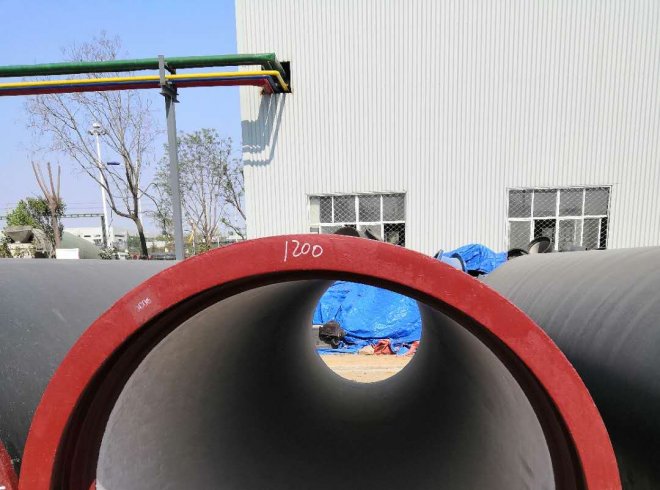

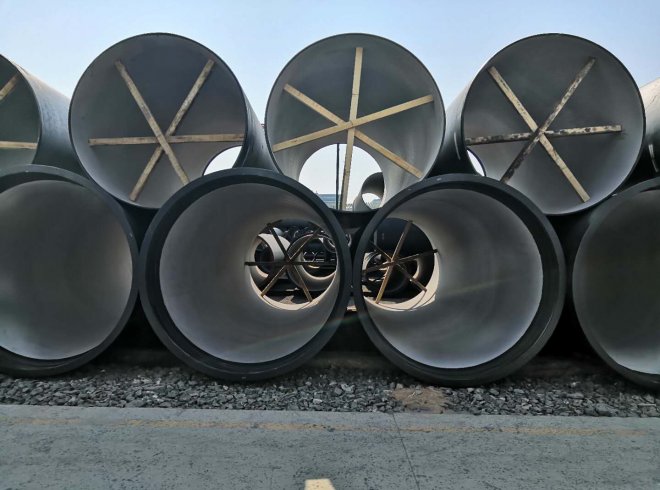

Ductile pipe

Ductile pipe

Specifications:

1	Type:	The T-type Joint Pipe (Push-on)
The K-type Joint Pipe
The Self-Restrained Joint Pipes
2	Standard:	ISO2531, EN545, EN598, etc
3	Size:	DN80~2600mm
4	Material:	Ductile Cast Iron GGG50
5	Pressure:	PN10, PN16, PN25,PN40
6	Class:	K9, K8, C25, C30, C40
7	Length:	6m, cut to 5.7m
8	Application:	Water supply project, drainage, sewage, irrigation, water pipeline.
9	Certificate:	ISO9001, BV, WRAS, SGS
10	Internal Coating:	a). Portland cement mortar lining
b). Sulphate Resistant cement mortar lining
c). High-Aluminum cement mortar lining
d). Fusion bonded epoxy coating
e). Liquid epoxy painting
f). Black bitumen painting
11	External Coating:	a). zinc+bitumen(70microns) painting
b). Fusion bonded epoxy coating
c). Zinc-aluminum alloy +liquid epoxy painting
12	Packing:	Bundles, in bulk
Note: The coating can also be accordance with customers' requirements.

Type:

The T-type Joint Pipe (Push-on)

The K-type Joint Pipe

The Self-Restrained Joint Pipes

Standard:

ISO2531, EN545, EN598, etc

Size:

DN80~2600mm

Material:

Ductile Cast Iron GGG50

Pressure:

PN10, PN16, PN25,PN40

Class:

K9, K8, C25, C30, C40

Length:

6m, cut to 5.7m

Application:

Water supply project, drainage, sewage, irrigation, water pipeline.

Certificate:

ISO9001, BV, WRAS, SGS

Internal Coating:

a). Portland cement mortar lining

b). Sulphate Resistant cement mortar lining

c). High-Aluminum cement mortar lining

d). Fusion bonded epoxy coating

e). Liquid epoxy painting

f). Black bitumen painting

External Coating:

a). zinc+bitumen(70microns) painting

b). Fusion bonded epoxy coating

c). Zinc-aluminum alloy +liquid epoxy painting

Packing:

Bundles, in bulk

Note: The coating can also be accordance with customers' requirements.
