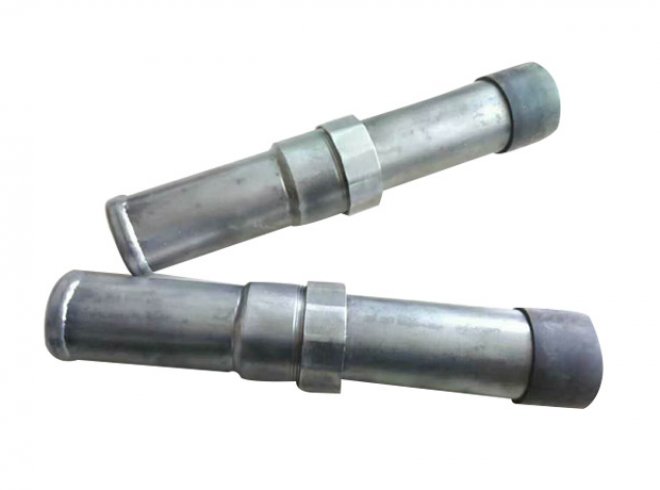

Spiral Sonic Pipe

Product Type:

Spiral Sonic Pipe



Material:

Q195 ,Q235,Q345,20#

OD:

50mm,57mm,60mm,100mm,112mm

Wall Thickness:

2-4mm

Length:

5.8m or 6m ,9m etc

Surface Treatment:

Nature or oiled

End finish:

Plain End & Threaded End

Certification:

Testing report, ISO


1.Fast and easy installation by workers.
2.Threaded connection.
3.No welding required at job site.

Applications

The tubes are usually attached to the reinforcement cage along the full length of the shafts. After concrete has been poured, the tubes are filled with water. In CSL, a transmitter emits an ultrasonic signal in one tube and the signal is sensed some time later by the receiver in another sonic tube. Poor concrete between the sonic tubes will delay or disrupt the signal. The engineer lowers the probes to the bottom of the shaft and moves the transmitter and receiver upward, until the entire shaft length is scanned. The engineer repeats the test for each pair of tubes. The engineer interprets data in the field and later reprocesses it in the office.

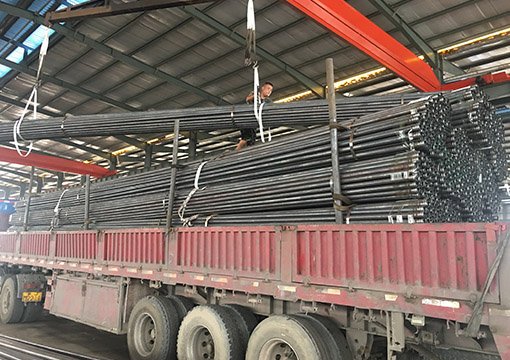

Package and Shipping
