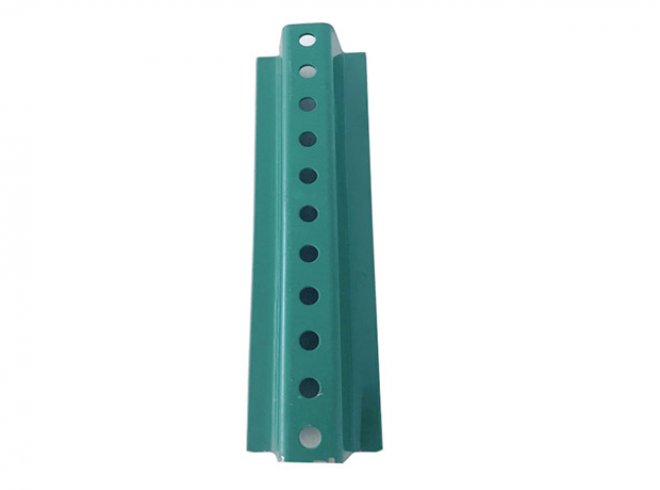

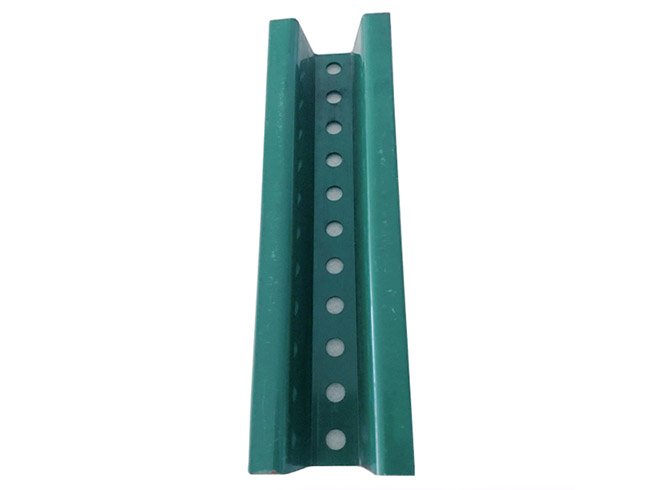

U Channel Posts

1.Street road&Parking&Highway U-Channel Posts.

2.Posts are available in Green painted,Power coated or Galvanized.
3.3/8” diameter holes start 1” from top of post and are spaced every 1 inch, center to center.

  • Parameter

U Channel Sign Post

Min tensile strength

60,000 psi (410 MPa)

min yield strength

800,000 psi (540MPa)

Holes

3/8” or 7/16”diameter holes on 1” or 2”centers

Standards

ASTM A499, Grade 60

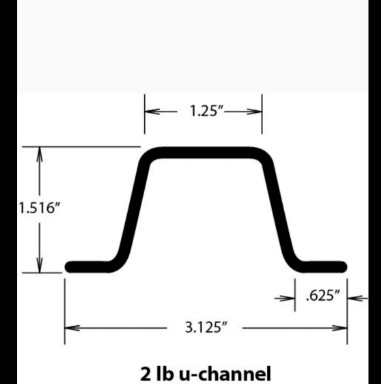

Dimensions

Available in 7-, 8-, 10-, 12-, 14-foot lengths or as customer's request

Finish

hot-dip galvanized/Painted Colors/Powder Coated


  • Advantages

1. Steel post is powder-coated and cured under heat to create a hard finish that's tougher

    and thicker than conventional paint.

2. Options of 4 ft., 6 ft., 7 ft., 8 ft., 9 ft., 10 ft., or 12 ft in any lengths.

3. Color options of green or black.

4. Tapered end drives into the ground without digging a hole for easy, one-person installation.

5. 3/8" diameter holes line post at every inch to adjust the sign's height.

6. Durable steel withstands harsh weather and vehicle impact.

7.Eco-friendly powder-coat emits near zero volatile organic compounds, and the over-spray

 can be recycled achieving nearly 100% usage.


Installation

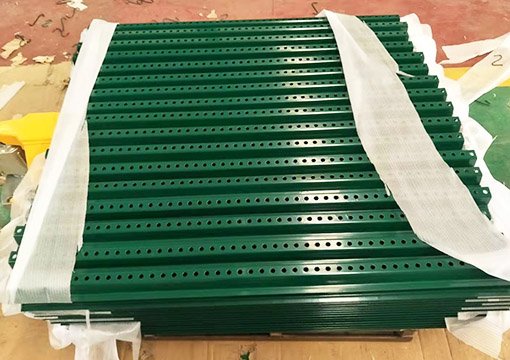

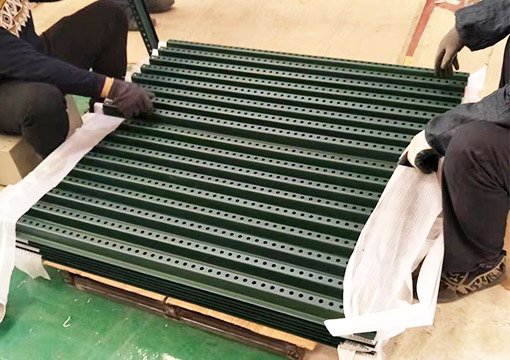

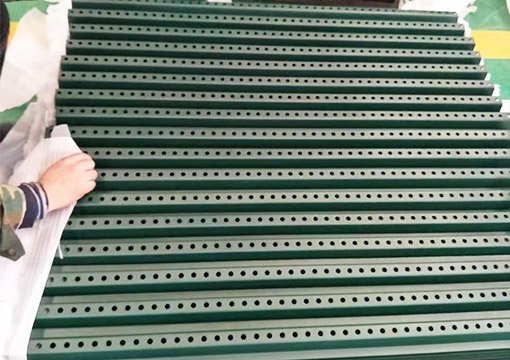

Package and Shipping
